Custom magnetostrictive level transmitter Manufacturer in China
Advantage:
- Approved by CE & UL
- Passed ISO 9001 Quality Management System
- Stable Function and Quality Assurance
- Private Label Custom Manufacturing Ability
Get A Quote Now

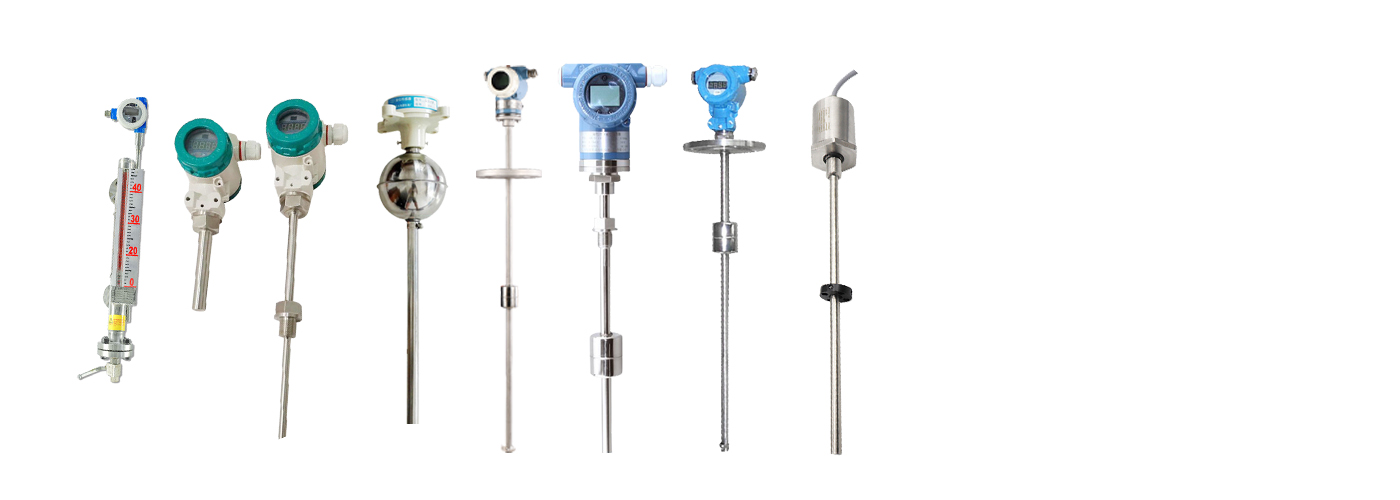

Magnetostrictive Level Sensor Product
As a magnetostrictive level transmitter factory, we are making our contribution to manufacturing magnetostrictive level sensor for different kinds of applications. In various industrial processes, monitoring the level of liquids within tanks or vessels is crucial for maintaining operational efficiency, safety, and regulatory compliance. Traditional measurement methods, such as float-based systems or pressure sensors, often come with limitations that compromise accuracy and reliability. This is where the magnetostrictive level transmitter emerges as a game-changer.
We will provide our magnetostrictive level sensor solutions for you according to your real function and application requirements. Therefore, if you need magnetostrictive level probe sensor, feel free to ask our magnetostrictive level transmitter price. Here are the magnetostrictive level transmitters types. Welcome to get a free quote.
Knowledge about Magnetostrictive Level Sensor
How does Magnetostrictive Level Transmitter Work?
At the heart of the magnetostrictive level transmitter lies the magnetostrictive phenomenon, a unique property exhibited by certain materials. When subjected to a magnetic field, these materials undergo mechanical deformation, producing a strain wave that travels along the material. This wave can be precisely measured and used to determine the position of a float within a liquid.
The operation of a magnetostrictive level transmitter involves several distinct steps:
Generation of Guided Waves
A current pulse is sent through the magnetostrictive wire, creating a strain wave that travels in both directions along the transducer tube.
Interaction with the Magnetic Float Collar
As the strain wave reaches the magnetic float collar, it is reflected back towards the sensor due to the collar’s magnetic properties.
Time-of-Flight Measurement
By measuring the time it takes for the strain wave to travel to the float collar and return, the transmitter calculates the precise position of the float, which corresponds to the liquid level.
What are the Components of a Magnetostrictive Level Transmitter?
A magnetostrictive level transmitter comprises several key components that work in tandem to provide accurate level measurements. These components include:
Transducer Tube
The transducer tube serves as the primary waveguide, housing the magnetostrictive wire. When a current pulse is sent through the wire, it generates a strain wave that travels along the tube.
Float and Guided Float
The float, often made of stainless steel, is buoyant on the liquid surface. Guided floats, equipped with a magnetic assembly, ensure consistent and stable positioning within the tube.
Magnetic Float Collar
The magnetic float collar interacts with the magnetostrictive wire’s strain wave, reflecting it back towards the sensor.
Waveguide
The waveguide guides and contains the strain wave, allowing precise measurement of the time it takes for the wave to travel along the tube and return.
What are the Advantages and Applications of Magnetostrictive Level Transmitters?
Advantages of Magnetostrictive Level Transmitters
Magnetostrictive level transmitters offer a range of benefits that set them apart from traditional measurement methods:
Exceptional Accuracy and Precision
Thanks to the precise nature of the magnetostrictive phenomenon, these transmitters can provide accurate measurements with minimal margin for error.
Real-time Monitoring
Magnetostrictive transmitters offer real-time level monitoring, enabling swift response to any changes in liquid levels.
High-Temperature and Pressure Compatibility
These transmitters are designed to withstand harsh environmental conditions, including high temperatures and pressures, making them suitable for a wide range of industries.
Minimal Maintenance Requirements
Due to their robust construction and non-contact measurement principle, magnetostrictive transmitters require minimal maintenance, reducing downtime.
Applications Across Industries
Magnetostrictive level transmitters find applications in various industries, including:
Oil and Gas
In oil refineries and storage tanks, accurate level measurement is crucial for inventory management and preventing overflows.
Chemical Manufacturing
Chemical processing often involves corrosive or hazardous liquids, making accurate level measurement vital for safety and quality control.
Food and Beverage
In the food industry, precise liquid level monitoring ensures consistent production and adherence to hygiene standards.
Water Treatment
Magnetostrictive transmitters play a role in water treatment facilities, helping optimize chemical dosing and ensuring efficient processes.
Why Choose Us As Your Magnetostrictive Level Probe Sensors Manufacturer
Benefit from Your Magnetostrictive Type Level Transmitter Manufacturer
Good Manufacturing Ability & Good Quality Control
You can obtain good manufacturing ability and ISO9001 quality management system to support your level sensor quality, your machine and your brand. You can provide sketches/designs for us to design, and we will protect all the designs of every client. Then we will do our OEM & ODM for you.
Leading R&D Ability & Professional Service
You can get our leading R&D ability to design and develop the new products for your use according to your idea or the design. You can also get our professional pre service and after service to finish your project perfectly and it will give you satisfaction and make you feel at home.
Multiple Payment Method & Safe Packaging
You can make the payment by various methods, such as paypal, west union, stripe, T/T, D/P, Xtransfer, Pingpong, Payoneer, Moneygram and so on. You can be assured that you will receive the complete parcels with nice packaging. We will be responsible the goods arrive safely.
Quick Delivery & Various Transportation Solutions
You will get the cargo within 7 to 15 days on general once you give us the order and make the payment already. For our products, we usually send the goods to you by express, such as DHL,FEDEX,TNT,ARAMEX,SHUNFENG and so on. Besides, we can also provide door to door service by air. The sea, rail and truck transport is also available for you.
Get Your Custom Magnetostrictive Level Measurement Step by Step
If you are thinking of one kind of magnetostrictive level measurement solutions, you will get the process here to finish your project!
STEP 1
Medium
Confirm Medium Type,Temperature & Pressure
STEP 2
Tank
Check Tank Type,Material & Size
STEP 3
Type & Working
Tell equipment method,level sensor types and working principle
STEP 4
Function & Output
Give required function & output
STEP 5
Prototype
2D/3D Prototype Confirmed
STEP 6
Mould
Mould Lead Time
STEP 7
Sample
Finally, we will make samples and send to customers
Need Help with Easier Level Sensor Solutions? We Are Experts!
FAQ about the Magnetostrictive Level Transmitter Manufacturer
Yes, we are a leading Liquid level sensor manufacturer, supplier and factory in china.
Of course, we are professional in OEM/ODM projects and we protect all the designs of every client, we will sign NDA to be ensure that we won’t send your artwork to any other clients and won’t sell your OEM items to anyone else. Any questions please send us your inquiry.
Yes, we provide PDF technical drawing by CAD on general. However, if you need 3D drawing to match with your 3D drawing to confirm if our developed product is suitable, we can provide 3D drawings by Solidwork and so on.
Yes, we have our R&D teams, hardware and software, lab equipment and instruments to design and develop new product for every customer.
Yes, we have ISO9001 quality management system and IATF 16949 quality management system to control our water level sensor quality. We also have CE and UL certification to fulfill European and North American markets.
Aether level sensor MOQ is 1 pc. We are willing to give samples for our every customer if you are interested in establishing good and long relationship with us. The samples lead time is short and it is usually within 3 to 5 days.
We have pvc pipe, bubble bag, foam, custom carton，blister box to make our packaging safe and provide affordable dhl, tnt, fedex for every customer. If you want door to door service, we can give DDP trade term.
Our delivery time is 7 to 15 days on general and payment terms can be T/T, D/P,L/C and so on.
